ProstatePlan RT
Automated prostate treatment planning in Eclipse
ProstatePlan RT brings automated, quality prostate planning to Halcyon, TrueBeam, Edge, and Ethos.
Automated Prostate Treatment Planning with ProstatePlan RT
Key Benefits
- High quality, automatically generated, prostate treatment plans
- Custom simple bolus designed for treatment site
- ProstatePlan RT opens from within Eclipse
- Uniform plan quality across treatments
- Plan generated in minutes
Follow along below to understand the steps of automated prostate treatment planning with ProstatePlan RT

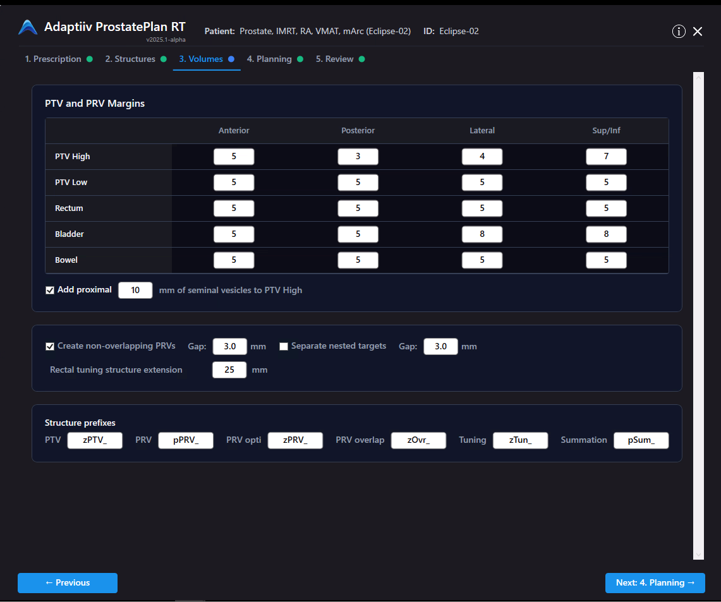

1: Automatically create required structures
Automated creation of planning structures:
- PTVs
- PRVs;
- Non-overlapping PRVs;
- PRV overlaps with PTVs;
- Rectal tuning;
- Separating nested targets;
- Adding SVs to PTV High;
- Choosing your own structure prefixes.

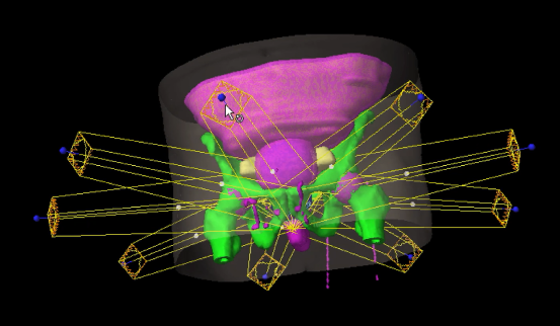

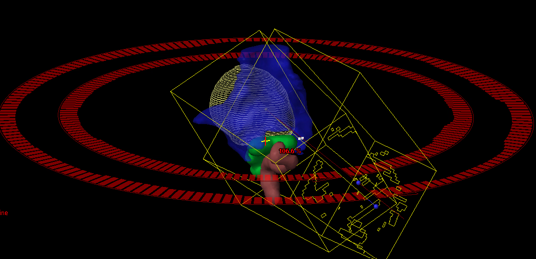

2: Strategic beam placement
Beam placement is automated based on geometry of target volume
- Planner selects:
- IMRT or VMAT option;
- Number of beams, or number of arcs.

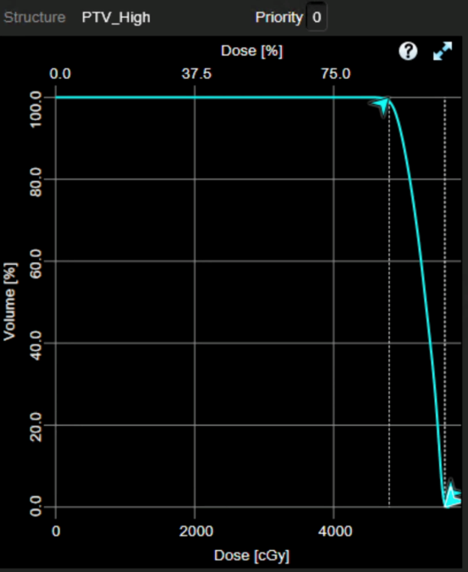

3: Automated Plan Optimization
- IMRT or VMAT optimization fully automated
- A user-defined optimization objectives template is used to:
- Ensure target volume coverage and uniformity
- Maximize high dose conformity
- Achieve compactness of intermediate dose
4: Forward dose calculation
- Leaf sequencing (IMRT) and forward dose calculation are completed automatically
- No user interaction required
Plan generated in only minutes*
* dependent on optimization/forward calculation algorithms/computational resource. Data on file

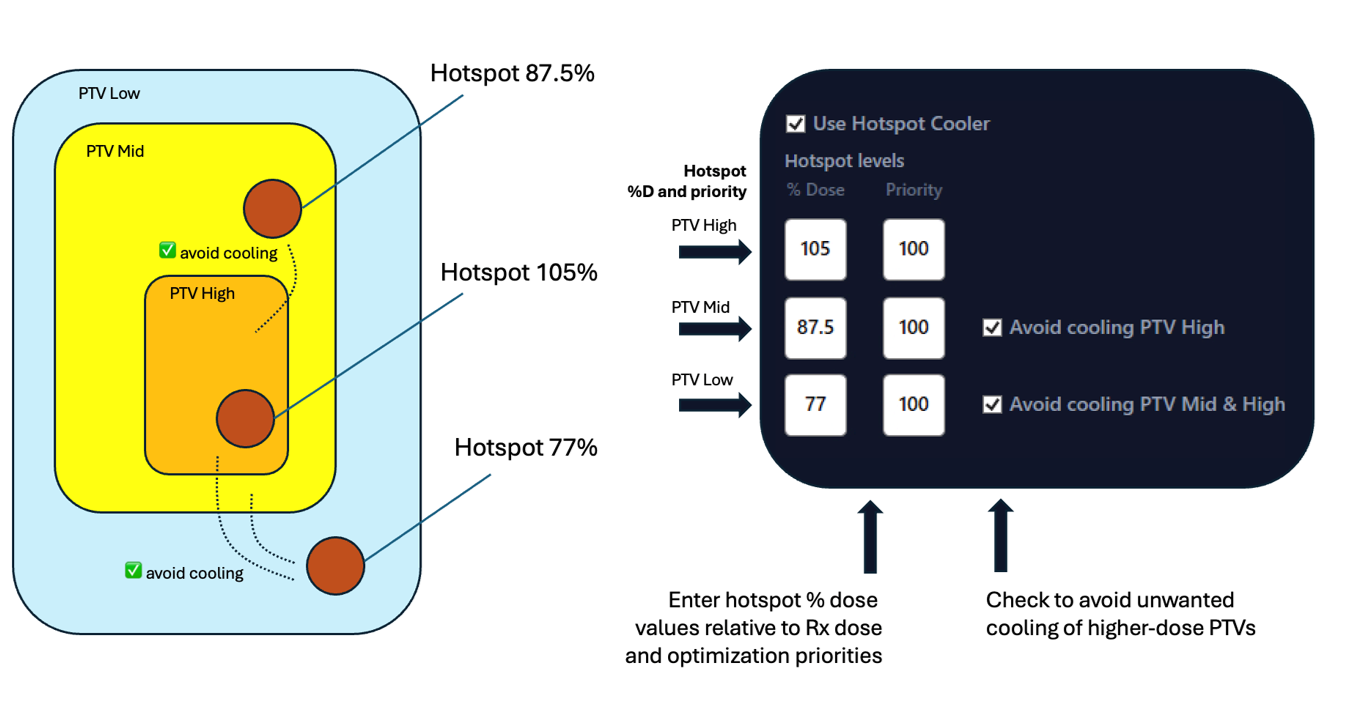

Built-in Hotspot Cooling
Automatically control hotspots in up to three dose levels
