DermaPlan RT
Automated skin treatment planning in Eclipse
DermaPlan RT brings automated, quality skin planning to Halcyon, TrueBeam, Edge, and Ethos.
Automated Skin Treatment Planning with DermaPlan RT
Key Benefits
- High quality, automatically generated, skin treatment plans
- Custom simple bolus designed for treatment site

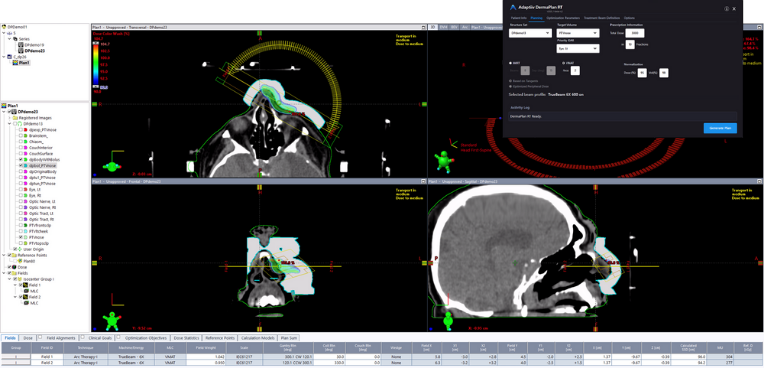

- DermaPlan RT opens from within Eclipse
- Uniform plan quality across treatments
- Plan generated in minutes
Follow along below to understand the steps of automated skin treatment planning with DermaPlan RT
1: Automatically create required structures
- Starting point is a CT structure set with the contoured PTV
- Bolus defined based on PTV geometry
- PTV planning structure expanded into bolus to improve sampling
- Tuning structures created to ensure dose compactness while maintaining coverage
2: Strategic beam placement
- Beam placement is automated
- User selects number of beams, angular separation, IMRT or VMAT
- Two options for intelligent IMRT beam placement optimization
- Based on tangent to PTV
- Minimizing peripheral dose
- VMAT arcs based on tangent geometry
3: Automated Plan Optimization
- IMRT or VMAT optimization fully automated in the background
- A class solution of objectives is used ensuring conformity at Rx dose and dose compactness at ~50%D
- User’s default algorithm will be used (PO, PRO, with or without GPU)
- No interaction by the user required
4: Forward dose calculation
- Leaf sequencing (IMRT) and forward dose calculation are completed automatically
- User’s default volume dose calculation (e.g. AAA or AXB) will be used
- No user interaction required
Plan generated in only minutes*
* dependent on optimization/forward calculation algorithms/computational resource. Data on file
Intelligent beam placement options
Two options for IMRT:
- Based on tangents
- Optimized peripheral dose
What People Are Saying
Testimonials
"When treating the nose and the face to design a plan it took 1 minute 58 seconds. Without DermaPlan, I would have planned this manually with 6MV VMAT which would have taken ~45 minutes."
Michael Ashenafi
Medical Physicist
University of Rochester
Case examples for common skin sites
PTV Nose

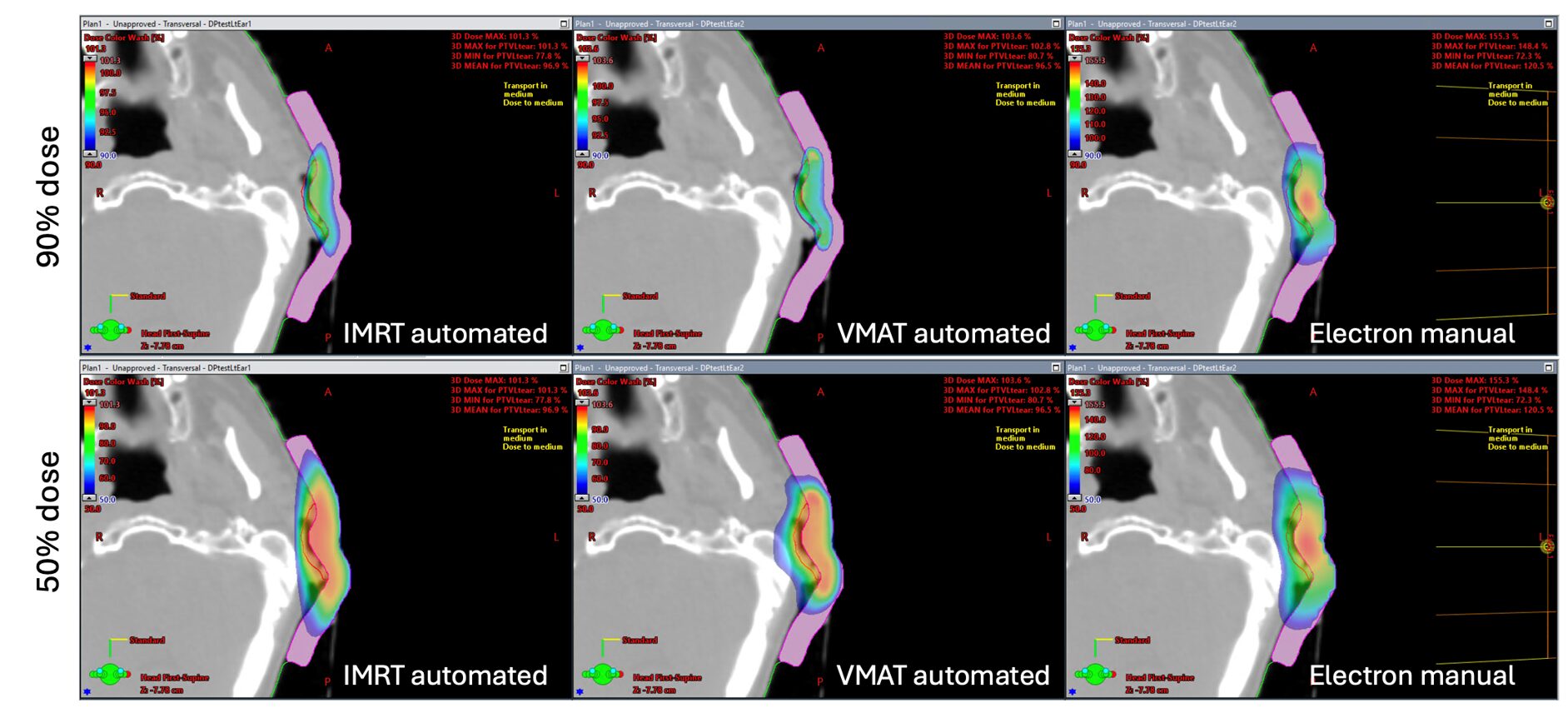

PTV Ear

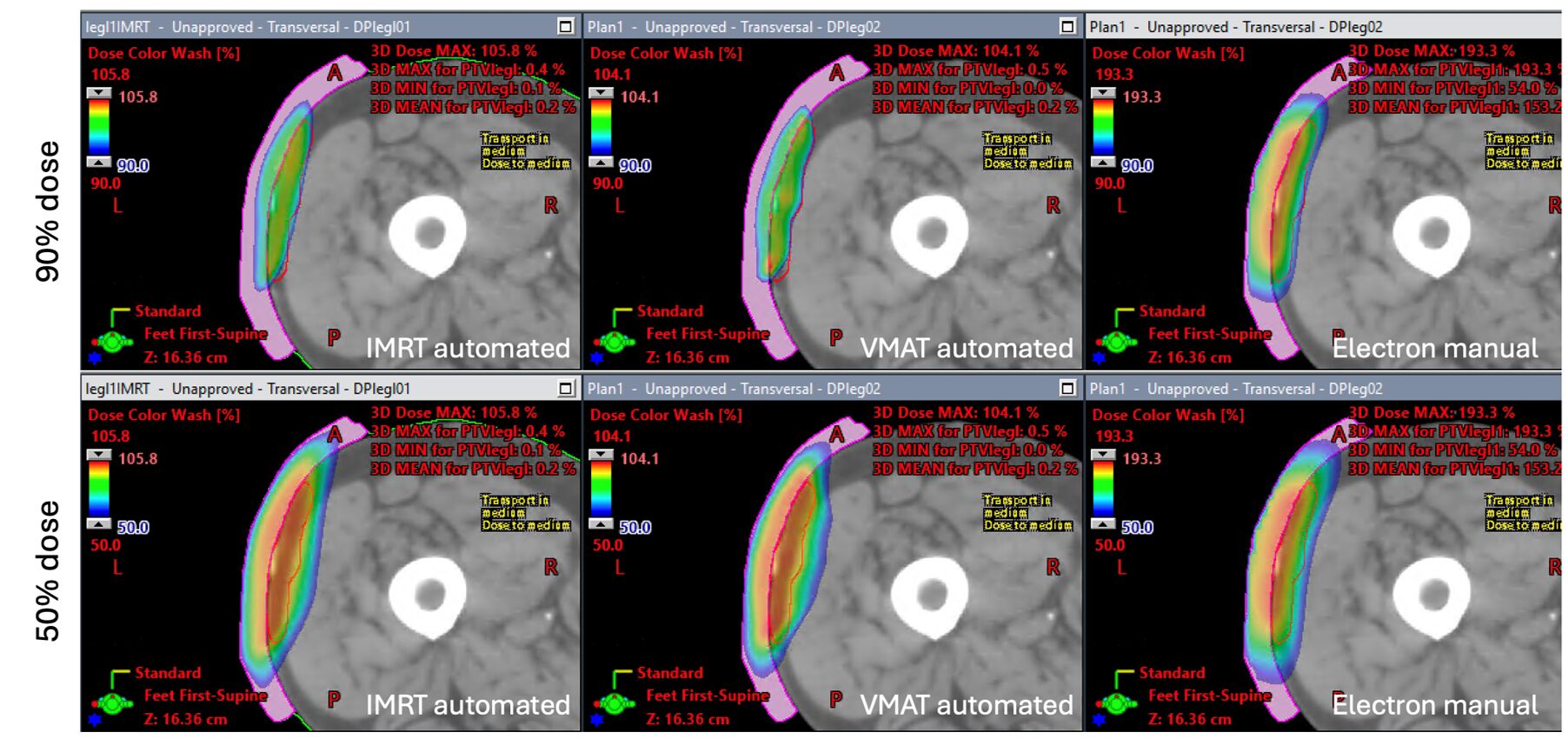

PTV Left Leg
